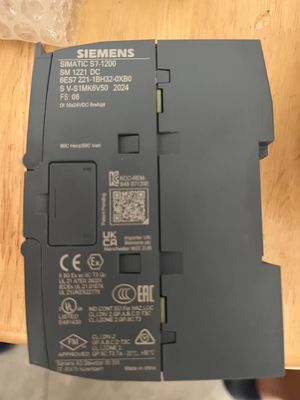

Name: 6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock
Brand: GREAT SYSTEM INDUSTRY CO. LTD
SKU: 6ES7221-1BH32-0XB0
Price: 363.02 USD
Availability: InStock

MOQ:	1
harga:	dapat dinegosiasikan
kemasan standar:	KARTON
Periode pengiriman:	Bisa dinegosiasikan
metode pembayaran:	T/t
Kapasitas pasokan:	500+pcs+stok

Informasi Detail

Deskripsi Produk

Informasi Rinci

Tempat asal

Jerman

Nama merek

Siemens

Sertifikasi

rohs

Nomor model

6ES7221-1BH32-0XB0

Rentang pengukuran - Tekanan:

-10....3000bar

Asal:

Jerman

Waktu tunggu:

6-8 minggu

Jaminan:

1 tahun

Barang-barang:

Baru dan asli

Warna:

Biru

Nama:

6ES7221

Penerus:

6ES7221-1BH32-0XB0

Menyoroti:

SIMATIC S7 digital input module

16 input SIMATIC S7 module

SIEMENS digital input module with warranty

Deskripsi Produk

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock

Technical data

SIMATIC S7-1200, Digital input SM 1221,16 digital input, 24V DC, infusion current/pull current

General Information

Product Type Label SM 1221, DI 16x24 VDC

power supply voltage

Rated value (DC) 24 V

Allowable range, lower limit (DC) 20.4V

The upper limit (DC) is 28.8V

input current

From the backplane bus DC 5 V, maximum 130 mA

Digital input terminal

● From load voltage L+(no-load), maximum 4 mA; per channel

Output voltage/heading

Measure the power supply voltage/title of the converter

Product Function/Measurement of Inverter Power Supply Voltage

power loss

Power loss, typical value 2.5W

digital input

Quantity input terminal quantity 16

● In component 4

The input characteristics comply with IEC 61131, type 1 is

The number of inputs that can be controlled simultaneously

All installation locations

-Up to 40 ℃, up to 16 ℃

Horizontal installation position

-Up to 40 ℃, up to 16 ℃

-Maximum 50 ℃, maximum 16 ℃

Vertical installation position

-Up to 40 ℃, up to 16 ℃

input voltage

Rated value (DC) 24 V

DC 5 V, signal "0" 1 mA

For signal "1" at 15 V DC, when it is 2.5 mA

input current

For signal "0", the maximum (allowable closed-circuit current) is 1 mA

For signal "1", the minimum value is 2.5mA

For signal "1", the typical value is 4 mA

Input delay (when the input voltage is rated)

For standard inputs

-Parameterization is; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms, and 12.8ms

Used for alarm input

-Parameterization is

conductor length

The required front plug is

Mechanical/Material

Shell material (front)

Plastic is

size

Width 45 millimeters

Height of 100mm

Depth 75mm

weight

Weight, approximately 210 grams

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock 0

Model	SM 1221 DI 8 x 24 V DC	SM 1221 DI 16 x 24 V DC
Article number	6ES7221-1BF32-0XB0	6ES7221-1BH32-0XB0
Dimensions W x H x D (mm)	45 x 100 x 75
Weight	170 grams	210 grams
Power dissipation	1.5 W	2.5 W
Current consumption (SM Bus)	105 mA	130 mA
Current consumption (24 V DC)	4 mA / input used

Tag:

Produk

MOQ:	1
harga:	dapat dinegosiasikan
kemasan standar:	KARTON
Periode pengiriman:	Bisa dinegosiasikan
metode pembayaran:	T/t
Kapasitas pasokan:	500+pcs+stok

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Jerman

Nama merek

Siemens

Sertifikasi

rohs

Nomor model

6ES7221-1BH32-0XB0

Rentang pengukuran - Tekanan:

-10....3000bar

Asal:

Jerman

Waktu tunggu:

6-8 minggu

Jaminan:

1 tahun

Barang-barang:

Baru dan asli

Warna:

Biru

Nama:

6ES7221

Penerus:

6ES7221-1BH32-0XB0

Kuantitas min Order:

Harga:

dapat dinegosiasikan

Kemasan rincian:

KARTON

Waktu pengiriman:

Bisa dinegosiasikan

Syarat-syarat pembayaran:

T/t

Menyediakan kemampuan:

500+pcs+stok

Menyoroti

SIMATIC S7 digital input module

16 input SIMATIC S7 module

SIEMENS digital input module with warranty

Deskripsi Produk

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock

Technical data

SIMATIC S7-1200, Digital input SM 1221,16 digital input, 24V DC, infusion current/pull current

General Information

Product Type Label SM 1221, DI 16x24 VDC

power supply voltage

Rated value (DC) 24 V

Allowable range, lower limit (DC) 20.4V

The upper limit (DC) is 28.8V

input current

From the backplane bus DC 5 V, maximum 130 mA

Digital input terminal

● From load voltage L+(no-load), maximum 4 mA; per channel

Output voltage/heading

Measure the power supply voltage/title of the converter

Product Function/Measurement of Inverter Power Supply Voltage

power loss

Power loss, typical value 2.5W

digital input

Quantity input terminal quantity 16

● In component 4

The input characteristics comply with IEC 61131, type 1 is

The number of inputs that can be controlled simultaneously

All installation locations

-Up to 40 ℃, up to 16 ℃

Horizontal installation position

-Up to 40 ℃, up to 16 ℃

-Maximum 50 ℃, maximum 16 ℃

Vertical installation position

-Up to 40 ℃, up to 16 ℃

input voltage

Rated value (DC) 24 V

DC 5 V, signal "0" 1 mA

For signal "1" at 15 V DC, when it is 2.5 mA

input current

For signal "0", the maximum (allowable closed-circuit current) is 1 mA

For signal "1", the minimum value is 2.5mA

For signal "1", the typical value is 4 mA

Input delay (when the input voltage is rated)

For standard inputs

-Parameterization is; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms, and 12.8ms

Used for alarm input

-Parameterization is

conductor length

The required front plug is

Mechanical/Material

Shell material (front)

Plastic is

size

Width 45 millimeters

Height of 100mm

Depth 75mm

weight

Weight, approximately 210 grams

6ES7221-1BH32-0XB0 Input module, SIMATIC S7, digital, 16 input in stock 0

Model	SM 1221 DI 8 x 24 V DC	SM 1221 DI 16 x 24 V DC
Article number	6ES7221-1BF32-0XB0	6ES7221-1BH32-0XB0
Dimensions W x H x D (mm)	45 x 100 x 75
Weight	170 grams	210 grams
Power dissipation	1.5 W	2.5 W
Current consumption (SM Bus)	105 mA	130 mA
Current consumption (24 V DC)	4 mA / input used
